Fostex UR2
| |
|
| Stereo Rack Memory Recorder
For more information, visit Fostex's website.
The UR-2 is a 1 U rack size stereo audio recorder using SD card and USB storage device that is flexibly adapting to the wide variety of playback requirements.
The UR-2 is a new generation stereo memory recorder from Fostex that uses 2 SD cards (SDHC compatible) and USB storage device as the recording media. The recording/ playback file format is BWF (WAV). Its ample playback functions will adapt to the wide variety of playback requirements. It offers high quality recording of up to 24bit/96kHz (in BWF format). Employing FAT 32 disc format, it is easy to process the file transfer to a PC based DAW.
|
The analog input and output are balanced XLR/+4dBu and un-balanced RCA/-10dBV, the digital input and output complies to AES/EBU and S/P DIF digital signal. It is flexible to be used in the available audio system. The playback function includes Chain Play and Timer Play, it is suitable for live stage performance and sound installation. In addition to the external control via parallel remote with D-Sub 25pin and RS-232C serial remote, a USB keyboard and 10-key keyboard can trigger the instant playback start, which is very useful at a live event, theater and broadcast environments.

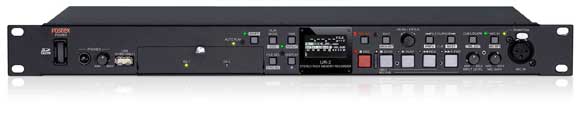

The Mic input located on the front panel offers 48V phantom power, it can be used not only for recording but also for speech to be mixed with playback source. Last but not least, its newly employed organic EL display gives an extremely clear visibility. This combined with DC power operation, it serves for outdoor use very well.
Additional Images
Features:
- 2 sets SD card slots and a USB host connector for alternate recording/playback among the different media.
- Stereo or Mono WAV (BWF) recording to SD card (also SDHC) and USB storage device
- Fs: 44.1/48/88.2/96kHz, Quantization: 16/24bit
- High speed file transfer with PC via USB 2.0 (bi-directional)
- Employing FAT32 format, it allows to directly mount the recorded files to PC.
- It adapts to a wide variety of use environment by offering Chain Play and Memory Play.
- Timer Play and Power ON Play enable automatic playback start for such as chime and repetitive announcement, which are convenient in the installation audio industry.
- The play mode list employs CSV file format so that it is easy to edit by a text editor or spread sheet program software on PC.
- 99 Cue points with locate function. Waveform display under Scrub mode offers easy and visual Cue point setting
- Microphone input with P48V available on the front panel. Not only for recording but for speech to be mixed with playback source.

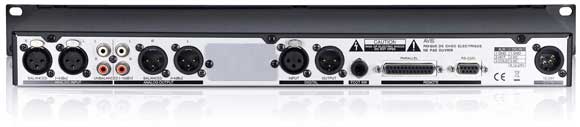

- Analog I/O with balanced XLR and un-balanced RCA pin jacks, Digital I/O with XLR connectors
- An organic EL display offers high visibility.
- Remote transport control via Foot SW, Parallel remote pot (Dsub 25pin) and RS-232C (D-sub 9pin)
- External USB keyboard can be used not only for file name editing but for transport control such as REC and PLAY.
Accessory: EP-CT1
Instant Start Controller for UR2
- 20 instant start points can be stored.
- Self-illuminated switches to identify file loading status as well as playback status.
- 5-million time durable push switch parts as well as robust but compact metal chassis.
- “Single mode” is to playback a file only once by pressing a key even more than twice, and “Continuous mode” is to playback from the start point anytime the key is pressed.
- Simple transport control (Rec, Play, Stop, etc.) mode is also available.
|
|
